2,000.00 / Piece
| Business Type | Manufacturer, Exporter, Supplier |
| Diameter | 100 Mm - 1000 Mm, 100mm X 15000MM ~ We Are Making Customize Size As Per Requirment |
| Pattern | Lined, Plain |
| Use | Industrial Use |
| Click to view more | |
Product Details
Condition
New
Shape
Round, We Are Making Customize Size
Material Grade
Polypropylene, Stainless Steel, PTFE, PVDF, HDPE, INCONEL, HASTELLOY, SUPER DUPLEX 2205, DUPLEX 2507, NICKEL, MONEL-400 ETC
Color
Black-Grey, WHITE, BLUE
Type
Demister Pads
Material of construction
SS304L / SS316L / SS317L /SS904L/SS321 / DUPLEX / SUPERDUPLEX / PP / PTFE / Monel / Hastelloy / GI / .
Wire Diamter
0.15 mm , 0.27 mm SS and 0.30pp
Efficiency
Up to 99.9% mist removal down to 3–5 microns
PAD SHAPE
Circular / Rectangular / Custom per vessel dimension
Pad Thickness
100 mm / 150 mm / 200 mm or as per requirement
Grid Support
Top & Bottom Grid (Material: Flat Bar + Rod of SS or CS)
Operating Temperature
Depends on material (e.g., SS up to 400°C, PP up to 90°C)
Application
Knockout drums, absorbers, scrubbers, separators, evaporators, etc.
Packaging Type
Silver Gray,WHITE
Number Of Flower
Demister Pads, WIRE MESH TYPE,Wire Mesh Demister Pad
Product Code
SWPTL-DM
Port
MUMBAI
Payment Terms
Other
Delivery Time
1-2 WEEKS
Packaging Details
50% ADVANCE + 50% AGAINST PROFORMA INVOICE BEFORE DISPATCH

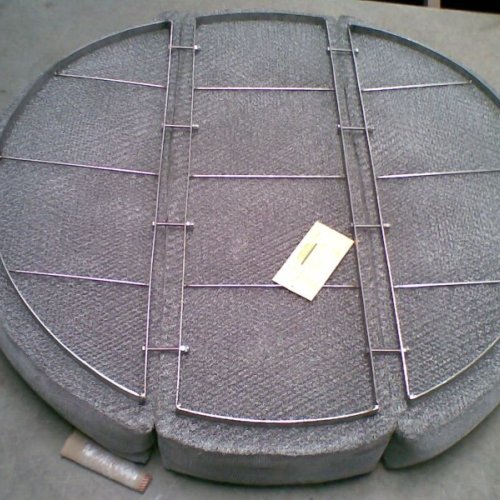

A **demister pad** (also known as a **mesh mist eliminator**) is a wire mesh device used to remove liquid droplets from gas or vapor streams. It works by causing mist-laden gas to pass through a dense mesh of metal or plastic wires, where the droplets collide, coalesce, and drain away due to gravity. Demister pads are widely used in **separators, scrubbers, and process columns** for efficient mist removal with **low pressure drop**, typically capturing droplets ≥3–5 microns.
